Tunnel junction-enabled monolithically integrated GaN micro-light emitting transistor

Rahman, Sheikh Ifatur; Awwad, Mohammad; Joishi, Chandan; Jamal-Eddine, Zane; Gunning, Brendan; Armstrong, Andrew Michael; Rajan, Siddharth

doi:10.1063/5.0213300

Tunnel junction-enabled monolithically integrated GaN micro-light emitting transistor

Journal Article · Thu May 30 00:00:00 EDT 2024 · Applied Physics Letters

DOI:https://doi.org/10.1063/5.0213300· OSTI ID:2371069

^[1]; ^[1]; ^[1]; ^[1]; ^[2]; ^[2]; ^[1]

The Ohio State Univ., Columbus, OH (United States)
Sandia National Lab. (SNL-NM), Albuquerque, NM (United States)

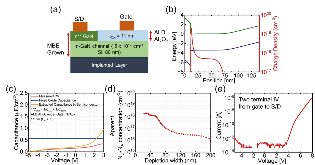

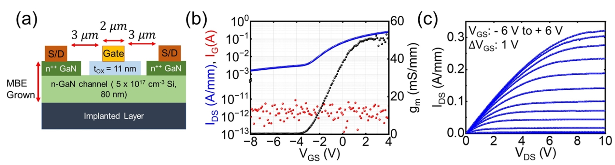

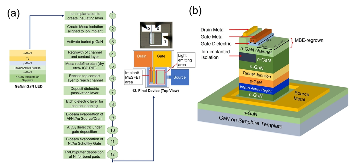

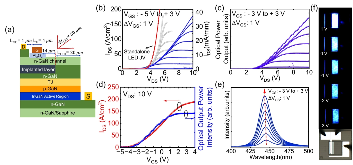

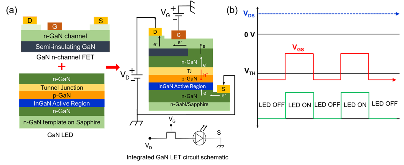

GaN/InGaN microLEDs are a very promising technology for next-generation displays. Switching control transistors and their integration are key components in achieving high-performance, efficient displays. Monolithic integration of microLEDs with GaN switching devices provides an opportunity to control microLED output power with capacitive (voltage)-controlled rather than current-controlled schemes. This approach can greatly reduce system complexity for the driver circuit arrays while maintaining device opto-electronic performance. In this work, we demonstrate a 3-terminal GaN micro-light emitting transistor that combines a GaN/InGaN blue tunneling-based microLED with a GaN n-channel FET. Further, the integrated device exhibits excellent gate control, drain current control, and optical emission control. This work provides a promising pathway for future monolithic integration of GaN FETs with microLED to enable fast switching, high-efficiency microLED display and communication systems.

View Accepted Manuscript (DOE)

Research Organization:: Sandia National Laboratories (SNL-NM), Albuquerque, NM (United States)

Sponsoring Organization:: USDOE National Nuclear Security Administration (NNSA); USDOE Office of Energy Efficiency and Renewable Energy (EERE), Energy Efficiency Office. Building Technologies Office; US Department of the Navy, Office of Naval Research (ONR)

Grant/Contract Number:: NA0003525

OSTI ID:: 2371069

Report Number(s):: SAND--2024-07055J

Journal Information:: Applied Physics Letters, Journal Name: Applied Physics Letters Journal Issue: 22 Vol. 124; ISSN 0003-6951

Publisher:: American Institute of Physics (AIP)Copyright Statement

Country of Publication:: United States

Language:: English

References (28)

Monolithically Integrated μLEDs/HEMTs Microdisplay on a Single Chip by a Direct Epitaxial Approach Cai, Yuefei; Zhu, Chenqi; Zhong, Wei Advanced Materials Technologies, Vol. 6, Issue 6 https://doi.org/10.1002/admt.202100214	journal	May 2021
Active‐Matrix GaN µ‐LED Display Using Oxide Thin‐Film Transistor Backplane and Flip Chip LED Bonding Um, Jae Gwang; Jeong, Duk Young; Jung, Younghun Advanced Electronic Materials, Vol. 5, Issue 3 https://doi.org/10.1002/aelm.201800617	journal	December 2018
Wafer‐scale monolithic hybrid integration of Si‐based IC and III–V epi‐layers—A mass manufacturable approach for active matrix micro‐LED micro‐displays Zhang, Lei; Ou, Fang; Chong, Wing Cheung Journal of the Society for Information Display, Vol. 26, Issue 3 https://doi.org/10.1002/jsid.649	journal	March 2018
26.2: Invited Paper: High Brightness, Emissive Microdisplay by Integration of III‐V LEDs with Thin Film Silicon Transistors Tull, Brian R.; Basaran, Zeynep; Gidony, Dafna SID Symposium Digest of Technical Papers, Vol. 46, Issue 1 https://doi.org/10.1002/sdtp.10256	journal	June 2015
19‐1: Invited Paper: Micro‐LED Microdisplays by Integration of III‐V LEDs with Silicon Thin Film Transistors Tull, Brian R.; Twu, Nancy; Hsu, Yu-Jen SID Symposium Digest of Technical Papers, Vol. 48, Issue 1 https://doi.org/10.1002/sdtp.11680	journal	May 2017
A Direct Epitaxial Approach To Achieving Ultrasmall and Ultrabright InGaN Micro Light-Emitting Diodes (μLEDs) Bai, Jie; Cai, Yuefei; Feng, Peng ACS Photonics, Vol. 7, Issue 2 https://doi.org/10.1021/acsphotonics.9b01351	journal	January 2020
Wafer-scale monolithic integration of full-colour micro-LED display using MoS2 transistor Hwangbo, Sumin; Hu, Luhing; Hoang, Anh Tuan Nature Nanotechnology, Vol. 17, Issue 5 https://doi.org/10.1038/s41565-022-01102-7	journal	April 2022
Tunneling-based carrier regeneration in cascaded GaN light emitting diodes to overcome efficiency droop Akyol, Fatih; Krishnamoorthy, Sriram; Rajan, Siddharth Applied Physics Letters, Vol. 103, Issue 8 https://doi.org/10.1063/1.4819737	journal	August 2013
Selective epitaxial growth of monolithically integrated GaN-based light emitting diodes with AlGaN/GaN driving transistors Liu, Zhaojun; Ma, Jun; Huang, Tongde Applied Physics Letters, Vol. 104, Issue 9 https://doi.org/10.1063/1.4867235	journal	March 2014
Metal-interconnection-free integration of InGaN/GaN light emitting diodes with AlGaN/GaN high electron mobility transistors Liu, Chao; Cai, Yuefei; Liu, Zhaojun Applied Physics Letters, Vol. 106, Issue 18 https://doi.org/10.1063/1.4921049	journal	May 2015
Polarization control in nitride quantum well light emitters enabled by bottom tunnel-junctions Turski, Henryk; Bharadwaj, Shyam; Xing, Huili (Grace) Journal of Applied Physics, Vol. 125, Issue 20 https://doi.org/10.1063/1.5088041	journal	May 2019
Bottom tunnel junction blue light-emitting field-effect transistors Bharadwaj, Shyam; Lee, Kevin; Nomoto, Kazuki Applied Physics Letters, Vol. 117, Issue 3 https://doi.org/10.1063/5.0009430	journal	July 2020
Fully transparent GaN homojunction tunnel junction-enabled cascaded blue LEDs Jamal-Eddine, Zane; Hasan, Syed M. N.; Gunning, Brendan Applied Physics Letters, Vol. 117, Issue 5 https://doi.org/10.1063/5.0015403	journal	August 2020
Low voltage drop tunnel junctions grown monolithically by MOCVD Jamal-Eddine, Zane; Hasan, Syed M. N.; Gunning, Brendan Applied Physics Letters, Vol. 118, Issue 5 https://doi.org/10.1063/5.0033554	journal	February 2021
III-Nitride p-down green (520 nm) light emitting diodes with near-ideal voltage drop Rahman, Sheikh Ifatur; Jamal-Eddine, Zane; Dominic Merwin Xavier, Agnes Maneesha Applied Physics Letters, Vol. 121, Issue 2 https://doi.org/10.1063/5.0093403	journal	July 2022
All-MOCVD-grown gallium nitride diodes with ultra-low resistance tunnel junctions Hasan, Syed M. N.; Gunning, Brendan P.; J. -Eddine, Zane Journal of Physics D: Applied Physics, Vol. 54, Issue 15 https://doi.org/10.1088/1361-6463/abdb0f	journal	January 2021
Integration of GaN light-emitting diodes with a-Si:H thin-film transistors for flexible displays Asad, Mohsen; Li, Qing; Lee, Czang-Ho Nanotechnology, Vol. 30, Issue 32 https://doi.org/10.1088/1361-6528/ab1a5e	journal	May 2019
Design and simulation of a III-Nitride light emitting transistor Awwad, Mohammad; Ifatur Rahman, Sheikh; Joishi, Chandan Semiconductor Science and Technology, Vol. 39, Issue 11 https://doi.org/10.1088/1361-6641/ad7754	journal	October 2024
Monolithic Integration of AlGaN/GaN HEMT on LED by MOCVD Liu, Zhao Jun; Huang, Tongde; Ma, Jun IEEE Electron Device Letters, Vol. 35, Issue 3 https://doi.org/10.1109/LED.2014.2300897	journal	March 2014
High Performance Monolithically Integrated GaN Driving VMOSFET on LED Lu, Xing; Liu, Chao; Jiang, Huaxing IEEE Electron Device Letters, Vol. 38, Issue 6 https://doi.org/10.1109/LED.2017.2691908	journal	June 2017
Monolithic Integration of GaN Nanowire Light-Emitting Diode With Field Effect Transistor Hartensveld, Matthew; Zhang, Jing IEEE Electron Device Letters, Vol. 40, Issue 3 https://doi.org/10.1109/LED.2019.2895846	journal	March 2019
Monolithic Integration of GaN-Based Green Micro-LED and Quasi-Vertical MOSFET Utilizing a Hybrid Tunnel Junction Sang, Yimeng; Zhang, Dongqi; Zhuang, Zhe IEEE Electron Device Letters, Vol. 44, Issue 7 https://doi.org/10.1109/LED.2023.3281580	journal	July 2023
Low-Leakage High-Breakdown Laterally Integrated HEMT-LED via n-GaN Electrode Liu, Chao; Cai, Yuefei; Zou, Xinbo IEEE Photonics Technology Letters, Vol. 28, Issue 10 https://doi.org/10.1109/LPT.2016.2532338	journal	May 2016
Effective Modulation of GaN-on-Si LED via Indigenous MOSFET Engineering Piao, Jinlong; Wu, Junhua; Wang, Yongjin IEEE Transactions on Electron Devices, Vol. 68, Issue 11 https://doi.org/10.1109/TED.2021.3110834	journal	November 2021
Comparative Breakdown Study of Mesa- and Ion-Implantation-Isolated AlGaN/GaN High-Electron-Mobility Transistors on Si Substrate Sun, Min; Lee, Hyung-Seok; Lu, Bin Applied Physics Express, Vol. 5, Issue 7 https://doi.org/10.1143/APEX.5.074202	journal	July 2012
GaN-Based Light Emitting Diodes with Tunnel Junctions Takeuchi, Tetsuya; Hasnain, Ghulam; Corzine, Scott Japanese Journal of Applied Physics, Vol. 40, Issue Part 2, No. 8B https://doi.org/10.1143/JJAP.40.L861	journal	August 2001
Monolithically integrated voltage-controlled MOSFET-LED device based on a GaN-on-silicon LED epitaxial wafer Yan, Jiabin; Jia, Bolun; Wang, Yongjin Optics Letters, Vol. 46, Issue 4 https://doi.org/10.1364/OL.414451	journal	February 2021
Lateral Hydrogen Diffusion at p-GaN Layers in Nitride-Based Light Emitting Diodes with Tunnel Junctions Kuwano, Yuka; Kaga, Mitsuru; Morita, Takatoshi Japanese Journal of Applied Physics, Vol. 52, Issue 8S https://doi.org/10.7567/JJAP.52.08JK12	journal	August 2013
