Analysis and modeling of the equilibrium behaviors of U and Pu in molten LiCl-KCl/Cd system at 500 °C

Journal Article · · Journal of Nuclear Materials
 [1];  [1]
  1. Idaho National Lab. (INL), Idaho Falls, ID (United States). Pyroprocessing Department
+ Show Author Affiliations

In the field of pyroprocessing of used nuclear fuels, liquid cadmium is applied in different ways to recover transuranics from molten salt, while effecting some degree of separations between transuranics and lanthanides. In this work, a model of the separation performance between uranium and plutonium across the phase boundary between molten salt and liquid cadmium is presented. The salt is the LiCl-KCl eutectic with solute concentrations of UCl3 and PuCl3. The cadmium is the liquid cadmium phase field from the Cd-U-Pu ternary alloy system. Lastly, the model used to describe the behavior of uranium and plutonium in the salt/cadmium system is applied to describe the behavior of plutonium and lanthanide in the salt/cadmium system.

Research Organization:
Idaho National Laboratory (INL), Idaho Falls, ID (United States)
Sponsoring Organization:
USDOE Office of Nuclear Energy (NE)
Grant/Contract Number:
AC07-05ID14517
OSTI ID:
1478469
Report Number(s):
INL/JOU--18-44719-Rev000
Journal Information:
Journal of Nuclear Materials, Journal Name: Journal of Nuclear Materials Journal Issue: C Vol. 508; ISSN 0022-3115
Publisher:
ElsevierCopyright Statement
Country of Publication:
United States
Language:
English

Figures / Tables (24)

Figure 1(p. 4)figure Figure 1
Figure 2(p. 4)figure Figure 2
Figure 3(p. 6)figure Figure 3
Table 1(p. 7)table Table 1
Figure 4(p. 9)figure Figure 4
Table 2(p. 11)table Table 2
Figure 5(p. 12)figure Figure 5
Figure 6A(p. 13)figure Figure 6A
Figure 6B(p. 13)figure Figure 6B

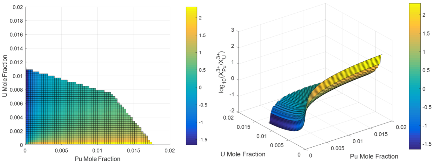

Figure 7(p. 15)figure Figure 7

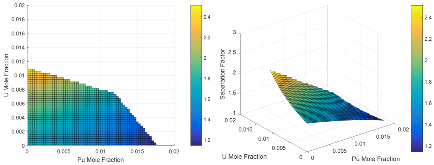

Figure 8(p. 15)figure Figure 8

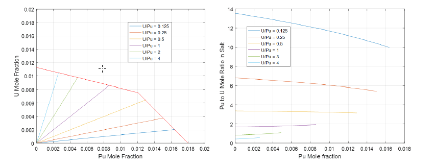

Figure 10(p. 16)figure Figure 10

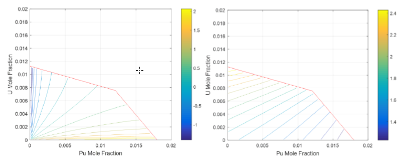

Figure 9(p. 16)figure Figure 9
Table 3(p. 17)table Table 3
Figure 11(p. 18)figure Figure 11

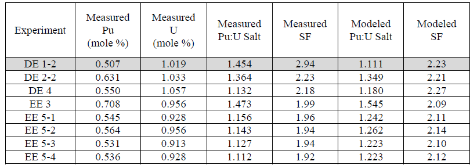

Table 4(p. 18)table Table 4
Table 5(p. 18)table Table 5

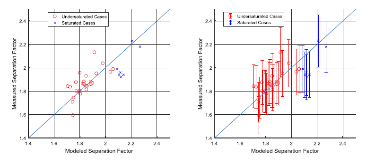

Figure 12(p. 19)figure Figure 12
Table 6(p. 20)table Table 6
Table 7(p. 21)table Table 7
Figure 13(p. 22)figure Figure 13

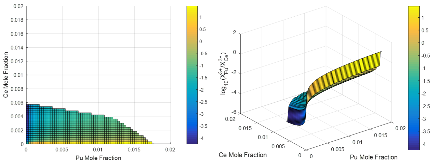

Figure 14(p. 22)figure Figure 14

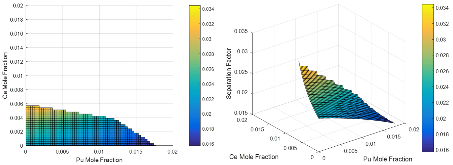

Figure 15(p. 23)figure Figure 15

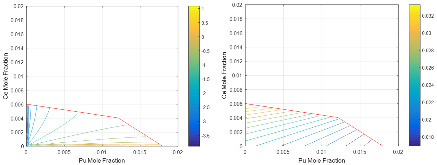

Figure 16(p. 23)figure Figure 16
