Reducing spurious mesh motion in Lagrangian finite volume and discontinuous Galerkin hydrodynamic methods

Journal Article · · Journal of Computational Physics
 [1];  [1];  [1]
  1. Los Alamos National Lab. (LANL), Los Alamos, NM (United States)
+ Show Author Affiliations
The Lagrangian finite volume (FV) cell-centered hydrodynamic (CCH) method and the Lagrangian discontinuous Galerkin (DG) CCH method have been demonstrated to be quite stable and capable of producing very accurate solutions on many mesh topologies. However, some challenges can arise with higher-order elements and polygonal elements that have many deformational degrees of freedom. With these types of meshes, elements can deform in unphysical ways and the mesh can tangle. In this study, we present methods for obtaining more robust Lagrangian solutions on polygonal and higher-order elements. The robustness is achieved by (1) incorporating a new iterative method that modifies the velocity reconstructions in the corners of the elements, and (2) a new multidirectional approximate Riemann solver that, when coupled with the iterative method, reduces spurious mesh motion. Lastly, the details of the numerical methods are discussed and their utility is demonstrated on a diverse suite of test problems using higher-order and polygonal elements.
Research Organization:
Los Alamos National Laboratory (LANL), Los Alamos, NM (United States)
Sponsoring Organization:
USDOE National Nuclear Security Administration (NNSA)
Grant/Contract Number:
AC52-06NA25396
OSTI ID:
1477650
Alternate ID(s):
OSTI ID: 1548151
OSTI ID: 23081576
Report Number(s):
LA-UR--17-29885
Journal Information:
Journal of Computational Physics, Journal Name: Journal of Computational Physics Journal Issue: C Vol. 372; ISSN 0021-9991
Publisher:
ElsevierCopyright Statement
Country of Publication:
United States
Language:
English

Figures / Tables (26)

Figure 1(p. 7)figure Figure 1
Figure 2(p. 7)figure Figure 2
Figure 3(p. 15)figure Figure 3

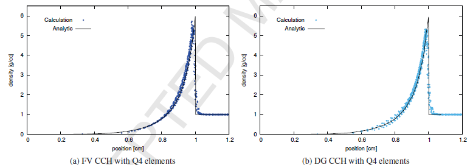

Figure 4(p. 15)figure Figure 4
Figure 5(p. 16)figure Figure 5

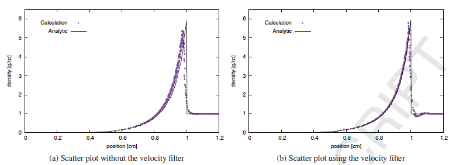

Figure 6(p. 17)figure Figure 6
Figure 7(p. 18)figure Figure 7
Figure 8(p. 19)figure Figure 8

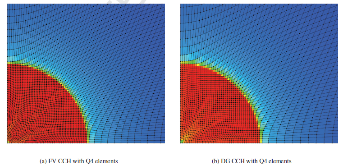

Figure 9(p. 19)figure Figure 9

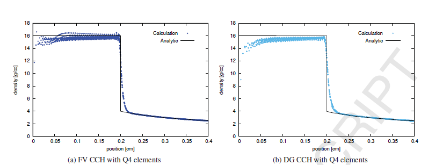

Figure 10(p. 20)figure Figure 10
Figure 11(p. 21)figure Figure 11
Figure 12(p. 22)figure Figure 12
Figure 13(p. 23)figure Figure 13
Figure 14(p. 24)figure Figure 14
Figure 15(p. 25)figure Figure 15
Figure 16(p. 26)figure Figure 16
Figure 17(p. 27)figure Figure 17
Figure 18(p. 27)figure Figure 18
Figure 19(p. 28)figure Figure 19
Table 1(p. 29)table Table 1
Table 2(p. 30)table Table 2
Figure 20(p. 31)figure Figure 20
Figure 21(p. 32)figure Figure 21
Figure 22(p. 33)figure Figure 22

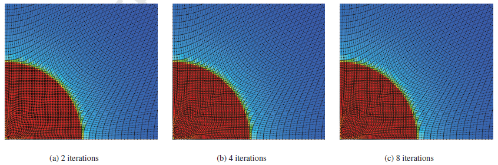

Figure 23(p. 33)figure Figure 23
Figure 24(p. 34)figure Figure 24
