Investigation of electrode-electrolyte interfaces to enable non-flammable Li-ion batteries operating up to 125°C with liquid electrolyte

Journal Article · · Cell Reports Physical Science
 [1];  [2];  [3];  [3];  [4];  [5];  [1]
  1. Wayne State Univ., Detroit, MI (United States)
  2. Brookhaven National Laboratory (BNL), Upton, NY (United States)
  3. National Inst. of Standards and Technology (NIST), Gaithersburg, MD (United States)
  4. Canadian Light Source, Saskatoon, SK (Canada)
  5. Argonne National Laboratory (ANL), Argonne, IL (United States); Oak Ridge National Laboratory (ORNL), Oak Ridge, TN (United States)
+ Show Author Affiliations
Non-flammable and high-temperature stable ionic liquid (IL)-based electrolytes could eliminate catastrophic battery failures and improve battery safety, but their poor electrochemical interaction with the LiNixMnyCozO2 (NMC) family of cathodes is a long-standing problem due to severe parasitic reactions at high temperature. Understanding surface and bulk structural mechanisms of NMC-type cathodes at elevated operational temperature is of paramount importance to facilitate stable electrochemical performance. Here, we report a non-flammable phosphonium IL-based cell chemistry that offers stable electrode-electrolyte interfaces, leading to electrochemical performance up to 125°C and high-temperature safety. We combine electrochemistry with multimodal X-ray spectroscopy methods to understand interfaces at elevated temperature (100°C). This nanoscale understating enables a proof-of-concept high-temperature cylindrical cell (14500), and the design achieves an average Coulombic efficiency of ≈99.5% up to 300 cycles at 100°C. The results ascertain the significance of depth-dependent degradation at the interface, guiding room-temperature Li-ion technology toward extreme-temperature applications.
Research Organization:
Brookhaven National Laboratory (BNL), Upton, NY (United States). National Synchrotron Light Source II (NSLS-II)
Sponsoring Organization:
Advanced Energy Consortium (AEC); National Science Foundation (NSF); USDOE Office of Science (SC), Basic Energy Sciences (BES). Scientific User Facilities (SUF)
Grant/Contract Number:
AC02-06CH11357; SC0012704
OSTI ID:
2570116
Report Number(s):
BNL--228312-2025-JAAM
Journal Information:
Cell Reports Physical Science, Journal Name: Cell Reports Physical Science Journal Issue: 5 Vol. 6; ISSN 2666-3864
Publisher:
ElsevierCopyright Statement
Country of Publication:
United States
Language:
English

References (55)

Distinct Solid-Electrolyte-Interphases on Sn (100) and (001) Electrodes Studied by Soft X-Ray Spectroscopy journal February 2014
Deciphering the Cathode-Electrolyte Interfacial Chemistry in Sodium Layered Cathode Materials journal October 2018
Charge Heterogeneity and Surface Chemistry in Polycrystalline Cathode Materials journal March 2018
Changes in electronic structure of the electrochemically Li-ion deintercalated LiNiO2 system investigated by soft X-ray absorption spectroscopy journal December 2006
Lithium secondary batteries working at very high temperature: Capacity fade and understanding of aging mechanisms journal August 2013
Microstructural study on degradation mechanism of layered LiNi0.6Co0.2Mn0.2O2 cathode materials by analytical transmission electron microscopy journal March 2016
Transition-metal redox evolution in LiNi0.5Mn0.3Co0.2O2 electrodes at high potentials journal August 2017
Thermal stress-induced charge and structure heterogeneity in emerging cathode materials journal May 2020
Depth-Dependent Understanding of Cathode Electrolyte Interphase (CEI) on the Layered Li-Ion Cathodes Operated at Extreme High Temperature journal May 2022
Using Real-Time Electron Microscopy To Explore the Effects of Transition-Metal Composition on the Local Thermal Stability in Charged Li x Ni y Mn z Co 1– y – z O 2 Cathode Materials journal May 2015
Investigating the Reversibility of Structural Modifications of Li x Ni y Mn z Co 1– y – z O 2 Cathode Materials during Initial Charge/Discharge, at Multiple Length Scales journal August 2015
Evolution of the Electrode–Electrolyte Interface of LiNi 0.8 Co 0.15 Al 0.05 O 2 Electrodes Due to Electrochemical and Thermal Stress journal January 2018
Application of Ionic Liquids to Energy Storage and Conversion Materials and Devices journal January 2017
Soft X-ray Absorption Spectroscopy of Liquids and Solutions journal June 2017
Oxygen K-edge X-ray Absorption Spectra journal April 2020
Influence of Electrolyte Additives on the Degradation of Li 2 VO 2 F Li-Rich Cathodes journal May 2020
Structural Evolution of Li x Ni y Mn z Co 1-y-z O 2 Cathode Materials during High-Rate Charge and Discharge journal November 2017
Atomic-Level Understanding of Surface Reconstruction Based on Li[Ni x Mn y Co 1– x – y ]O 2 Single-Crystal Studies journal April 2020
Do Increased Ni Contents in LiNi x Mn y Co z O 2 (NMC) Electrodes Decrease Structural and Thermal Stability of Li Ion Batteries? A Thorough Look by Consideration of the Li + Extraction Ratio journal October 2019
Probing Depth-Dependent Transition-Metal Redox of Lithium Nickel, Manganese, and Cobalt Oxides in Li-Ion Batteries journal December 2020
Quasi-Solid Electrolytes for High Temperature Lithium Ion Batteries journal November 2015
Ionic Liquid–Organic Carbonate Electrolyte Blends To Stabilize Silicon Electrodes for Extending Lithium Ion Battery Operability to 100 °C journal June 2016
Understanding the Degradation Mechanism of Lithium Nickel Oxide Cathodes for Li-Ion Batteries journal November 2016
Mechanistic Study of Electrolyte Additives to Stabilize High-Voltage Cathode–Electrolyte Interface in Lithium-Ion Batteries journal December 2017
Distinct Surface and Bulk Thermal Behaviors of LiNi 0.6 Mn 0.2 Co 0.2 O 2 Cathode Materials as a Function of State of Charge journal February 2020
Unraveling the Cationic and Anionic Redox Reactions in a Conventional Layered Oxide Cathode journal October 2019
Probing the Origin of Enhanced Stability of “AlPO4” Nanoparticle Coated LiCoO2 during Cycling to High Voltages: Combined XRD and XPS Studies journal October 2009
Challenges for Rechargeable Li Batteries journal February 2010
Nonaqueous Liquid Electrolytes for Lithium-Based Rechargeable Batteries journal October 2004
Investigation of the Charge Compensation Mechanism on the Electrochemically Li-Ion Deintercalated Li 1 - x Co 1/3 Ni 1/3 Mn 1/3 O 2 Electrode System by Combination of Soft and Hard X-ray Absorption Spectroscopy journal December 2005
The Li-Ion Rechargeable Battery: A Perspective journal January 2013
Estimating Hybridization of Transition Metal and Oxygen States in Perovskites from O K -edge X-ray Absorption Spectroscopy journal January 2014
Conflicting Roles of Nickel in Controlling Cathode Performance in Lithium Ion Batteries journal September 2012
Issues and challenges facing rechargeable lithium batteries journal November 2001
Surface reconstruction and chemical evolution of stoichiometric layered cathode materials for lithium-ion batteries journal March 2014
Evolution of redox couples in Li- and Mn-rich cathode materials and mitigation of voltage fade by reducing oxygen release journal July 2018
Surface Chemistry Dependence on Aluminum Doping in Ni-rich LiNi0.8Co0.2−yAlyO2 Cathodes journal November 2019
High temperature electrical energy storage: advances, challenges, and frontiers journal January 2016
In situ X-ray absorption spectroscopy of transition metal based water oxidation catalysts journal January 2017
Thermal, electrochemical and radiolytic stabilities of ionic liquids journal January 2018
Multimodal electrochemistry coupled microcalorimetric and X-ray probing of the capacity fade mechanisms of Nickel rich NMC – progress and outlook journal January 2022
Interphase control for high performance lithium metal batteries using ether aided ionic liquid electrolyte journal January 2022
High resolution x‐ray absorption spectroscopy with absolute energy calibration for the determination of absorption edge energies journal March 1996
In situ x-ray absorption spectroscopic study of the Li[Ni1∕3Co1∕3Mn1∕3]O2 cathode material journal June 2005
Differences between L 3 and L 2 x‐ray absorption spectra of transition metal compounds journal October 1994
The 1s x-ray absorption pre-edge structures in transition metal oxides journal February 2009
The 2p absorption spectra of 3d transition metal compounds in tetrahedral and octahedral symmetry journal April 1992
ATHENA , ARTEMIS , HEPHAESTUS : data analysis for X-ray absorption spectroscopy using IFEFFIT journal June 2005
Influence of Charge Cutoff Voltage on the Cycling Behavior of LiNi0.5Mn0.3Co0.2O2 Cathode journal August 2020
Elucidating Failure Mechanisms in Li-ion Batteries Operating at 100 °C journal October 2023
Oxygen Release and Its Effect on the Cycling Stability of LiNi x Mn y Co z O 2 (NMC) Cathode Materials for Li-Ion Batteries journal January 2017
Structural Degradation of Layered Cathode Materials in Lithium-Ion Batteries Induced by Ball Milling journal January 2019
Effect of Ambient Storage on the Degradation of Ni-Rich Positive Electrode Materials (NMC811) for Li-Ion Batteries journal January 2018
Depth-Dependent Redox Behavior of LiNi 0.6 Mn 0.2 Co 0.2 O 2 journal January 2018
Understanding Surface and Bulk Electronic Structure of Li-ion Battery Cathodes Operated at Extreme Environment journal December 2022

Figures / Tables (8)

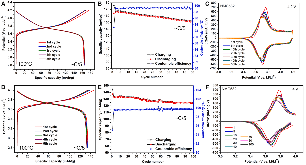

Figure 1(p. 6)figure Figure 1
Figure 2(p. 7)figure Figure 2
Figure 3(p. 8)figure Figure 3
Figure 4(p. 10)figure Figure 4
Figure 5(p. 12)figure Figure 5
Figure 6(p. 14)figure Figure 6

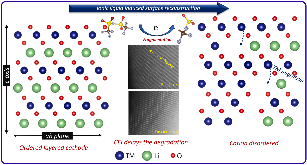

Figure 7(p. 15)figure Figure 7
Figure 8(p. 16)figure Figure 8
