Thermodynamic modeling of adsorption at the liquid-solid interface

Journal Article · · Fluid Phase Equilibria
 [1];  [2];  [2];  [2];  [2]
  1. Texas Tech Univ., Lubbock, TX (United States); OSTI
  2. Texas Tech Univ., Lubbock, TX (United States)
+ Show Author Affiliations
Adsorptive separation techniques are significantly energy efficient in comparison to conventional thermal separation techniques such as distillation. Despite extensive research and development activities undertaken for mixed-gas adsorption, the use of adsorption techniques for the separation of multicomponent liquid mixtures is still limited. A major barrier is the lack of accurate adsorption thermodynamic models, which form the scientific foundation of process simulation of such systems, making the translation to industrial scale challenging. In this work, we have rigorously computed the surface excess of adsorption for six binary liquid mixtures on silica gel at 303 K using the frameworks of the generalized Langmuir isotherm (gL) and the adsorbed solution theory (AST). The six binary liquid mixtures were formed by the pair-wise combinations of four components: benzene, 1,2-dichloroethane, cyclohexane, and n-heptane. We have based our calculations by considering simultaneous equilibria of three phases: saturated vapor phase, bulk liquid phase, and adsorbed phase. Further, the composition of the corresponding saturated vapor phase was estimated by the Nonrandom Two-Liquid activity coefficient model and experimental vapor-liquid equilibria data. The activity coefficients of the adsorbed phase, the central issue of multicomponent adsorption thermodynamics, were calculated using the adsorption Nonrandom Two-Liquid activity coefficient model. Devoid of simplifying assumptions, gL and AST provide rigorous thermodynamic frameworks for adsorption equilibria of multicomponent liquid mixtures.
Research Organization:
American Institute of Chemical Engineers (AIChE), New York, NY (United States)
Sponsoring Organization:
USDOE Office of Energy Efficiency and Renewable Energy (EERE)
Grant/Contract Number:
EE0007888
OSTI ID:
2418555
Alternate ID(s):
OSTI ID: 1881994
Journal Information:
Fluid Phase Equilibria, Journal Name: Fluid Phase Equilibria Journal Issue: C Vol. 563; ISSN 0378-3812
Publisher:
ElsevierCopyright Statement
Country of Publication:
United States
Language:
English

References (31)

Prediction of mixed‐gas adsorption equilibria from pure component adsorption isotherms journal May 2020
Generalization of thermodynamic Langmuir isotherm for mixed‐gas adsorption equilibria journal March 2022
Thermodynamics of mixed-gas adsorption journal January 1965
Local compositions in thermodynamic excess functions for liquid mixtures journal January 1968
A thermodynamic consistency test for adsorption from binary liquid mixtures on solids journal January 1971
Prediction of adsorption at liquid-solid interface from adsorption isotherms of pure unsaturated vapors journal January 1973
Adsorption of binary and ternary hydrocarbon gas mixtures on activated carbon: Experimental determination and theoretical prediction of the ternary equilibrium data journal January 1981
Activity coefficients of mixtures adsorbed on heterogeneous surfaces journal July 1983
Multicomponent adsorption equilibria of nonideal mixtures journal August 1986
Mixed-gas adsorption journal May 2001
Local composition activity coefficient model for mixed-gas adsorption equilibria journal June 2019
An activity-based formulation for Langmuir adsorption isotherm journal November 2019
Isosteric heat of adsorption from thermodynamic Langmuir isotherm journal January 2021
Cross-sectional areas of molecules adsorbed on solid surfaces journal April 1967
Critical discussion of the use of adsorption measurements from the liquid phase for surface area estimation journal February 1972
Adsorption of near-ideal binary liquid mixtures by Graphon journal July 1981
A Collection of More than 900 Gas Mixture Adsorption Experiments in Porous Materials from Literature Meta-Analysis journal December 2020
Adsorption from Liquid Mixtures on Solids: Thermodynamics of Excess Properties and Their Temperature Coefficients journal May 1972
Thermodynamic consistency test for adsorption of liquids and vapors on solids journal November 1972
Analogy between adsorption from liquids and adsorption from vapors journal November 1972
Statistical thermodynamics of adsorption from liquid mixtures on solids. I. Ideal adsorbed phase journal July 1970
The Adsorption of Gases on Plane Surfaces of Glass, mica and Platinum. journal September 1918
Thermodynamics of adsorption from solution. Part 1.—Perfect systems journal January 1964
Thermodynamics of adsorption from solution. Part 2.—Imperfect systems journal January 1965
Adsorption and structuring phenomena at the solid/liquid interface journal January 1975
Thermodynamics of adsorption from solution. Adsorption by graphon from binary mixtures of benzene, cyclohexane and n-heptane
  • Ash, Stuart G.; Bown, Richard; Everett, Douglas H.
  • Journal of the Chemical Society, Faraday Transactions 1: Physical Chemistry in Condensed Phases, Vol. 71, Issue 0 https://doi.org/10.1039/f19757100123
journal January 1975
Thermodynamics of adsorption from solution. The systems (benzene + ethanol)/Graphon and (n-heptane + ethanol)/Graphon
  • Brown, Christopher E.; Everett, Douglas H.; Morgan, Christopher J.
  • Journal of the Chemical Society, Faraday Transactions 1: Physical Chemistry in Condensed Phases, Vol. 71, Issue 0 https://doi.org/10.1039/f19757100883
journal January 1975
Thermodynamics of adsorption from binary liquid mixtures on heterogeneous adsorbents journal January 1986
Statistical Mechanics of Multimolecular Adsorption. IV. The Statistical Analog of the BET Constant a 1 b 2 / b 1 a 2 . Hindered Rotation of a Symmetrical Diatomic Molecule Near a Surface journal March 1948
The Estimation of Parameters in Nonlinear, Implicit Models journal May 1973
Thermodynamics of interfacial phenomena journal January 1981

Figures / Tables (13)

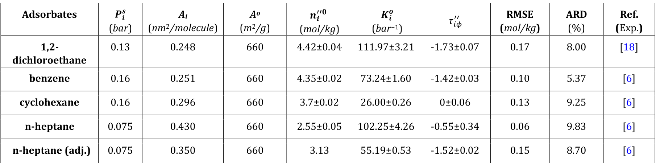

Table 1(p. 12)table Table 1
Table 2(p. 14)table Table 2

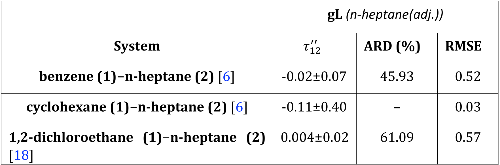

Table 3(p. 16)table Table 3
Figure 1(p. 25)figure Figure 1
Figure 2(p. 26)figure Figure 2

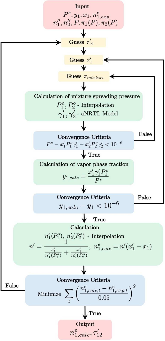

Figure 3(p. 27)figure Figure 3

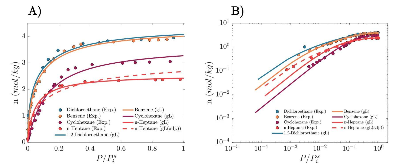

Figure 4(p. 28)figure Figure 4
Figure 5(p. 28)figure Figure 5
Figure 6(p. 29)figure Figure 6
Figure 7(p. 29)figure Figure 7
Figure 8(p. 30)figure Figure 8
Figure 9(p. 30)figure Figure 9
Figure 10(p. 31)figure Figure 10
