Transient Weighted Moving-Average Model of Photovoltaic Module Back-Surface Temperature

Journal Article · · IEEE Journal of Photovoltaics
 [1];  [2];  [2];  [1]
  1. Arizona State Univ., Mesa, AZ (United States)
  2. Sandia National Lab. (SNL-NM), Albuquerque, NM (United States)
+ Show Author Affiliations

Accurate modeling of photovoltaic (PV) performance requires the precise calculation of module temperature. Currently, most temperature models rely on steady-state assumptions that do not account for the transient climatic conditions and thermal mass of the module. On the other hand, complex physics-based transient models are computationally expensive and difficult to parameterize. In order to address this, a new approach to transient thermal modeling was developed, in which the steady-state predictions from previous timesteps are weighted and averaged to accurately predict the module temperature at finer time scales. This model is informed by 3-D finite-element analyses, which are used to calculate the effect of wind speed and module unit mass on module temperature. The model, in application, serves as an added filter over existing steady-state models that smooths out erroneous values that are a result of intermittency in solar resource. Validation of this moving-average model has shown that it can improve the overall PV energy performance model accuracy by as much as 0.58% over steady-state models based on mean absolute error improvements and can significantly reduce the variability between the model predictions and measured temperature times series data.

Research Organization:
Sandia National Laboratories (SNL-NM), Albuquerque, NM (United States)
Sponsoring Organization:
USDOE Office of Energy Efficiency and Renewable Energy (EERE), Solar Energy Technologies Program (EE-2A)
Grant/Contract Number:
AC04-94AL85000
OSTI ID:
1634788
Report Number(s):
SAND2020--4367J; 685564
Journal Information:
IEEE Journal of Photovoltaics, Journal Name: IEEE Journal of Photovoltaics Journal Issue: 4 Vol. 10; ISSN 2156-3381
Publisher:
IEEECopyright Statement
Country of Publication:
United States
Language:
English

Figures / Tables (9)

TABLE I(p. 3)table TABLE I
Figure 1(p. 4)figure Figure 1
Figure 2(p. 4)figure Figure 2

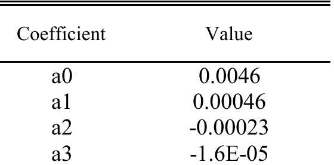

TABLE II(p. 5)table TABLE II
TABLE III(p. 5)table TABLE III
Figure 3(p. 6)figure Figure 3
TABLE IV(p. 6)table TABLE IV
Figure 4(p. 7)figure Figure 4

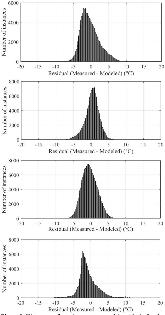

Figure 5(p. 7)figure Figure 5
