CO2/brine/rock interactions in Lower Tuscaloosa formation

Soong, Yee; Howard, Bret H.; Dilmore, Robert M.; Haljasmaa, Igor; Crandall, Dustin M.; Zhang, Liwei; Zhang, Wu; Lin, Ronghong; Irdi, Gino A.; Romanov, Vyacheslav N.; Mclendon, Thomas R.

doi:10.1002/ghg.1611

CO₂/brine/rock interactions in Lower Tuscaloosa formation

Journal Article · Wed Dec 07 00:00:00 EST 2016 · Greenhouse Gases: Science and Technology

DOI:https://doi.org/10.1002/ghg.1611· OSTI ID:1569756

Soong, Yee ^[1]; Howard, Bret H. ^[1]; Dilmore, Robert M. ^[1]; Haljasmaa, Igor ^[1]; Crandall, Dustin M. ^[1]; Zhang, Liwei ^[1]; Zhang, Wu ^[1]; Lin, Ronghong ^[1]; Irdi, Gino A. ^[1]; Romanov, Vyacheslav N. ^[1]; Mclendon, Thomas R. ^[1]

National Energy Technology Lab. (NETL), Pittsburgh, PA (United States)

Saline aquifers are the largest potential continental geologic CO₂ sequestration resource. Understanding of potential geochemically induced changes to the porosity and permeability of host CO₂ storage and sealing formation rock will improve our ability to predict CO₂ plume dynamics, storage capacity, and long–term reservoir behavior. Experiments exploring geochemical interactions of CO₂/brine/rock on saline formations under CO₂ sequestration conditions were conducted in a static system. Chemical interactions in core samples from the Lower Tuscaloosa formation from Jackson County, Mississippi, with exposure to CO₂–saturated brine under sequestration conditions were studied through six months of batch exposure. The experimental conditions to which the core samples of Lower Tuscaloosa sandstone and Selma chalk were exposed to a temperature of 85°C, CO₂ pressure of 23.8 MPa (3500 psig), while immersed in a model brine representative of Tuscaloosa Basin. Computed tomography (CT), X–Ray diffraction (XRD), Scanning Electron Microscopy (SEM), brine chemistry, and petrography analyses were performed before and after the exposure. Permeability measurements from the sandstone core sample before and after exposure showed a permeability reduction. No significant change of the permeability measurements was noticed for the core sample obtained from Selma chalk after it was exposed to CO₂/brine for six months. Furthermore, these results have implications for performance of the storage interval, and the integrity of the seal in a CO₂ storage setting.

View Accepted Manuscript (DOE)

Research Organization:: National Energy Technology Laboratory (NETL), Pittsburgh, PA, Morgantown, WV, and Albany, OR (United States)

Sponsoring Organization:: USDOE

OSTI ID:: 1569756

Alternate ID(s):: OSTI ID: 1530427

Report Number(s):: NETL-PUB--20283

Journal Information:: Greenhouse Gases: Science and Technology, Journal Name: Greenhouse Gases: Science and Technology Journal Issue: 6 Vol. 6; ISSN 2152-3878

Publisher:: Society of Chemical Industry, WileyCopyright Statement

Country of Publication:: United States

Language:: English

References (23)

A study of safe CO ₂ storage capacity in saline aquifers: a numerical study : CO Ranjith, P. G.; Perera, M. S. A.; Khan, E. International Journal of Energy Research, Vol. 37, Issue 3 https://doi.org/10.1002/er.2954	journal	October 2012
A new optimization approach to energy network modeling: anthropogenic CO ₂ capture coupled with enhanced oil recovery : A new optimization approach to energy network modeling Middleton, Richard S. International Journal of Energy Research, Vol. 37, Issue 14 https://doi.org/10.1002/er.2993	journal	December 2012
Understanding the significance of in situ coal properties for CO ₂ sequestration: An experimental and numerical study : Coal properties for CO2 sequestration De Silva, P. N. K.; Ranjith, P. G. International Journal of Energy Research, Vol. 38, Issue 1 https://doi.org/10.1002/er.3062	journal	July 2013
Effect of contaminants from flue gas on CO ₂ sequestration in saline formation : CO2 sequestration Soong, Yee; Hedges, Sheila W.; Howard, Bret H. International Journal of Energy Research, Vol. 38, Issue 9 https://doi.org/10.1002/er.3140	journal	December 2013
Physical and chemical characteristics of potential seal strata in regions considered for demonstrating geological saline CO2 sequestration Griffith, Craig A.; Dzombak, David A.; Lowry, Gregory V. Environmental Earth Sciences, Vol. 64, Issue 4 https://doi.org/10.1007/s12665-011-0911-5	journal	February 2011
The conditions limiting CO2 storage in aquifers van der Meer, L. G. H. Energy Conversion and Management, Vol. 34, Issue 9-11 https://doi.org/10.1016/0196-8904(93)90042-9	journal	September 1993
The dissolution kinetics of major sedimentary carbonate minerals Morse, John W.; Arvidson, Rolf S. Earth-Science Reviews, Vol. 58, Issue 1-2 https://doi.org/10.1016/S0012-8252(01)00083-6	journal	July 2002
Geochemical effects of CO2 sequestration in sandstones under simulated in situ conditions of deep saline aquifers Wigand, M.; Carey, J. W.; Schütt, H. Applied Geochemistry, Vol. 23, Issue 9 https://doi.org/10.1016/j.apgeochem.2008.06.006	journal	September 2008
CO2–brine–rock interaction — First results of long-term exposure experiments at in situ P–T conditions of the Ketzin CO2 reservoir Fischer, Sebastian; Liebscher, Axel; Wandrey, Maren Geochemistry, Vol. 70 https://doi.org/10.1016/j.chemer.2010.06.001	journal	August 2010
Coupled alkali-feldspar dissolution and secondary mineral precipitation in batch systems: 1. New experiments at 200 °C and 300 bars Fu, Qi; Lu, Peng; Konishi, Hiromi Chemical Geology, Vol. 258, Issue 3-4 https://doi.org/10.1016/j.chemgeo.2008.09.014	journal	January 2009
Experimental determination of porosity and permeability changes induced by injection of CO2 into carbonate rocks Luquot, L.; Gouze, P. Chemical Geology, Vol. 265, Issue 1-2 https://doi.org/10.1016/j.chemgeo.2009.03.028	journal	July 2009
An experimental investigation of trace element dissolution in carbon dioxide: Applications to the geological storage of CO2 Rempel, Kirsten U.; Liebscher, Axel; Heinrich, Wilhelm Chemical Geology, Vol. 289, Issue 3-4 https://doi.org/10.1016/j.chemgeo.2011.08.003	journal	October 2011
CO2–rock–brine interactions in Lower Tuscaloosa Formation at Cranfield CO2 sequestration site, Mississippi, U.S.A. Lu, Jiemin; Kharaka, Yousif K.; Thordsen, James J. Chemical Geology, Vol. 291 https://doi.org/10.1016/j.chemgeo.2011.10.020	journal	January 2012
Numerical simulation of porosity and permeability evolution of Mount Simon sandstone under geological carbon sequestration conditions Zhang, Liwei; Soong, Yee; Dilmore, Robert Chemical Geology, Vol. 403 https://doi.org/10.1016/j.chemgeo.2015.03.014	journal	May 2015
Influence of carbon dioxide on coal permeability determined by pressure transient methods Siriwardane, Hema; Haljasmaa, Igor; McLendon, Robert International Journal of Coal Geology, Vol. 77, Issue 1-2 https://doi.org/10.1016/j.coal.2008.08.006	journal	January 2009
US Department of Energy’s regional carbon sequestration partnership initiative: Update on validation and development phases Rodosta, Traci; Litynski, John; Plasynski, Sean Energy Procedia, Vol. 4 https://doi.org/10.1016/j.egypro.2011.02.271	journal	January 2011
Modeling and simulation of carbon sequestration at Cranfield incorporating new physical models Delshad, Mojdeh; Kong, Xianhui; Tavakoli, Reza International Journal of Greenhouse Gas Control, Vol. 18 https://doi.org/10.1016/j.ijggc.2013.03.019	journal	October 2013
X-ray microtomography characterization of porosity, permeability and reactive surface changes during dissolution Gouze, Philippe; Luquot, Linda Journal of Contaminant Hydrology, Vol. 120-121 https://doi.org/10.1016/j.jconhyd.2010.07.004	journal	March 2011
Reactivity of Mount Simon Sandstone and the Eau Claire Shale Under CO ₂ Storage Conditions Carroll, Susan A.; McNab, Walt W.; Dai, Zurong Environmental Science & Technology, Vol. 47, Issue 1 https://doi.org/10.1021/es301269k	journal	August 2012
Evaporite Caprock Integrity: An Experimental Study of Reactive Mineralogy and Pore-Scale Heterogeneity during Brine-CO ₂ Exposure Smith, Megan M.; Sholokhova, Yelena; Hao, Yue Environmental Science & Technology, Vol. 47, Issue 1 https://doi.org/10.1021/es3012723	journal	August 2012
Geochemistry of CO2 sequestration in the Jurassic Navajo Sandstone, Colorado Plateau, Utah Parry, W. T.; Forster, Craig B.; Evans, J. P. Environmental Geosciences, Vol. 14, Issue 2 https://doi.org/10.1306/eg.07120606004	journal	February 2007
North Dakota lignite and Pittsburgh bituminous coal: a comparative analysis in application to CO_{2 sequestration} Haljasmaa, Igor V.; McLendon, T. Robert; Jikich, Sinisha A. International Journal of Oil, Gas and Coal Technology, Vol. 4, Issue 3 https://doi.org/10.1504/IJOGCT.2011.040839	journal	January 2011
CO2 Sequestration in Saline Formation Soong, Yee; Howard, Bret H.; Hedges, Sheila W. Aerosol and Air Quality Research, Vol. 14, Issue 2 https://doi.org/10.4209/aaqr.2013.06.0195	journal	January 2014

Cited By (3)

Application of a new reduced-complexity assessment tool to estimate CO ₂ and brine leakage from reservoir and above-zone monitoring interval (AZMI) through an abandoned well under geologic carbon storage conditions : Modeling and Analysis: Application of a new reduced-complexity assessment tool to estimate CO Zhang, Liwei; Dilmore, Robert; Huerta, Nicolas Greenhouse Gases: Science and Technology, Vol. 8, Issue 5 https://doi.org/10.1002/ghg.1813	journal	September 2018
Water–rock–CO ₂ interactions and CO ₂ storage of Honghe tight oil reservoirs: an experimental and simulation study He, Yingfu; Ji, Bingyu; Yang, Shu Greenhouse Gases: Science and Technology, Vol. 9, Issue 4 https://doi.org/10.1002/ghg.1875	journal	May 2019
Micro-CT Characterization of Wellbore Cement Degradation in SO ₄ ^2- –Bearing Brine under Geological CO ₂ Storage Environment Gan, Manguang; Zhang, Liwei; Miao, Xiuxiu Geofluids, Vol. 2019 https://doi.org/10.1155/2019/5164010	journal	November 2019

Figures / Tables (2)

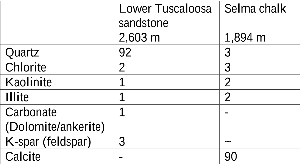

Table 1(p. 29)

Table 2(p. 30)
