Impact of petrophysical uncertainty on Bayesian hydrogeophysical inversion and model selection

Journal Article · · Advances in Water Resources
 [1];  [1]
  1. Univ. of Lausanne, Lausanne (Switzerland). Inst. of Earth Sciences, Applied and Environmental Geophysics Group
+ Show Author Affiliations
Quantitative hydrogeophysical studies rely heavily on petrophysical relationships that link geophysical properties to hydrogeological properties and state variables. Coupled inversion studies are frequently based on the questionable assumption that these relationships are perfect (i.e., no scatter). Using synthetic examples and crosshole ground-penetrating radar (GPR) data from the South Oyster Bacterial Transport Site in Virginia, USA, we investigate the impact of spatially-correlated petrophysical uncertainty on inferred posterior porosity and hydraulic conductivity distributions and on Bayes factors used in Bayesian model selection. Our study shows that accounting for petrophysical uncertainty in the inversion (I) decreases bias of the inferred variance of hydrogeological subsurface properties, (II) provides more realistic uncertainty assessment and (III) reduces the overconfidence in the ability of geophysical data to falsify conceptual hydrogeological models.
Research Organization:
Lawrence Berkeley National Laboratory (LBNL), Berkeley, CA (United States)
Sponsoring Organization:
USDOE Office of Science (SC)
Grant/Contract Number:
AC02-05CH11231
OSTI ID:
1567104
Journal Information:
Advances in Water Resources, Journal Name: Advances in Water Resources Journal Issue: C Vol. 111; ISSN 0309-1708
Publisher:
ElsevierCopyright Statement
Country of Publication:
United States
Language:
English

References (54)

Probabilistic inference of multi-Gaussian fields from indirect hydrological data using circulant embedding and dimensionality reduction: JOINT FIELD/VARIOGRAM MCMC INVERSION journal June 2015
A statistical concept to assess the uncertainty in Bayesian model weights and its impact on model ranking: ASSESSING THE UNCERTAINTY IN BAYESIAN MODEL WEIGHTS journal September 2015
A Bayesian approach to improved calibration and prediction of groundwater models with structural error journal November 2015
Direct prediction of spatially and temporally varying physical properties from time-lapse electrical resistance data: DIRECT FORECAST FROM TL RESISTANCE DATA journal September 2016
Sworn testimony of the model evidence: Gaussian Mixture Importance (GAME) sampling: SWORN TESTIMONY OF THE MODEL EVIDENCE journal July 2017
Falsification and corroboration of conceptual hydrological models using geophysical data: Falsification of hydrological models using geophysics journal January 2014
Physically based regularization of hydrogeophysical inverse problems for improved imaging of process-driven systems: POD-BASED imaging of process-driven systems journal October 2013
Bayesian model selection in hydrogeophysics: Application to conceptual subsurface models of the South Oyster Bacterial Transport Site, Virginia, USA journal April 2017
On uncertainty quantification in hydrogeology and hydrogeophysics journal December 2017
Markov chain Monte Carlo simulation using the DREAM software package: Theory, concepts, and MATLAB implementation journal January 2016
Probabilistic electrical resistivity tomography of a CO2 sequestration analog journal August 2014
Finding the right balance between groundwater model complexity and experimental effort via Bayesian model selection journal December 2015
Some Tests of Significance, Treated by the Theory of Probability journal April 1935
Lithologic tomography: From plural geophysical data to lithology estimation journal January 1999
Estimating the hydraulic conductivity at the south oyster site from geophysical tomographic data using Bayesian Techniques based on the normal linear regression model journal June 2001
Hydrogeological characterization of the south oyster bacterial transport site using geophysical data journal October 2001
Characterization of heterogeneous near-surface materials by joint 2D inversion of dc resistivity and seismic data: CHARACTERIZATION OF HETEROGENEOUS NEAR-SURFACE MATERIALS journal July 2003
Geochemical characterization using geophysical data and Markov Chain Monte Carlo methods: A case study at the South Oyster bacterial transport site in Virginia: GEOCHEMICAL CHARACTERIZATION journal December 2004
Applying petrophysical models to radar travel time and electrical resistivity tomograms: Resolution-dependent limitations journal January 2005
Estimation of field-scale soil hydraulic and dielectric parameters through joint inversion of GPR and hydrological data: JOINT INVERSION OF GPR AND HYDROLOGICAL DATA journal November 2005
Development of a joint hydrogeophysical inversion approach and application to a contaminated fractured aquifer: ESTIMATING HYDROGEOLOGICAL ZONATION journal June 2006
Improved hydrogeophysical characterization using joint inversion of cross-hole electrical resistance and ground-penetrating radar traveltime data: JOINT INVERSION OF CROSS-HOLE ERT AND GPR journal December 2006
Improved extraction of hydrologic information from geophysical data through coupled hydrogeophysical inversion: COUPLED HYDROGEOPHYSICAL INVERSION journal April 2010
High-dimensional posterior exploration of hydrologic models using multiple-try DREAM (ZS) and high-performance computing : EFFICIENT MCMC FOR HIGH-DIMENSIONAL PROBLEMS journal January 2012
Mapping permeability in heterogeneous aquifers using hydrologic and seismic data journal July 1992
Geophysical-hydrological identification of field permeabilities through Bayesian updating journal August 1993
Equation of State Calculations by Fast Computing Machines journal June 1953
Bayes Factors journal June 1995
Joint inversion: a structural approach journal February 1997
Learning about physical parameters: the importance of model discrepancy journal October 2014
Monte Carlo sampling methods using Markov chains and their applications journal April 1970
Utilizing the onset of time-lapse changes: a robust basis for reservoir monitoring and characterization journal January 2014
Summary statistics from training images as prior information in probabilistic inversion journal February 2015
Joint inversion of multiple geophysical and petrophysical data using generalized fuzzy clustering algorithms journal November 2016
Governing equations for the coupled electromagnetics and acoustics of porous media journal December 1994
Finite difference computation of traveltimes in very contrasted velocity models: a massively parallel approach and its associated tools journal April 1991
Effects of uncertainty in rock-physics models on reservoir parameter estimation using seismic amplitude variation with angle and controlled-source electromagnetics data journal January 2009
Lessons Learned from Bacterial Transport Research at the South Oyster Site journal June 2011
Bayesian Interpolation journal May 1992
Porosity from seismic data: A geostatistical approach journal October 1988
Mapping lithofacies and pore‐fluid probabilities in a North Sea reservoir: Seismic inversions and statistical rock physics journal July 2001
The optimization approach to lithological tomography: Combining seismic data and petrophysics for porosity prediction journal September 2004
Joint inversion of crosshole radar and seismic traveltimes acquired at the South Oyster Bacterial Transport Site journal July 2008
Petrophysical seismic inversion conditioned to well-log data: Methods and application to a gas reservoir journal March 2009
Probabilistic petrophysical-properties estimation integrating statistical rock physics with seismic inversion journal May 2010
Zonation for 3D aquifer characterization based on joint inversions of multimethod crosshole geophysical data journal November 2010
Fast probabilistic nonlinear petrophysical inversion journal March 2011
Quantitative log interpretation and uncertainty propagation of petrophysical properties and facies classification from rock-physics modeling and formation evaluation analysis journal May 2012
Fast probabilistic petrophysical mapping of reservoirs from 3D seismic data journal May 2012
Structure-coupled joint inversion of geophysical and hydrological data journal May 2013
Accounting for imperfect forward modeling in geophysical inverse problems — Exemplified for crosshole tomography journal May 2014
Joint inversion of multiple geophysical data using guided fuzzy c -means clustering journal May 2016
Inference from Iterative Simulation Using Multiple Sequences journal November 1992
Distributed Soil Moisture from Crosshole Ground-Penetrating Radar Travel Times using Stochastic Inversion journal January 2013

Cited By (1)

On the Field Estimation of Moisture Content Using Electrical Geophysics: The Impact of Petrophysical Model Uncertainty journal August 2019

Figures / Tables (17)

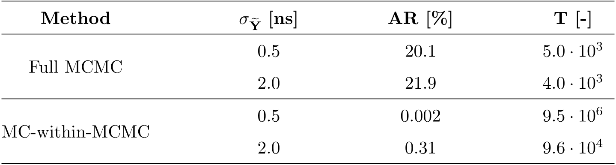

Table 1(p. 14)table Table 1
Figure 1(p. 15)figure Figure 1

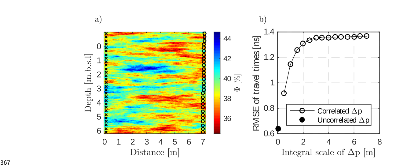

Figure 2(p. 17)figure Figure 2
Table 2(p. 18)table Table 2
Figure 3(p. 19)figure Figure 3
Figure 4(p. 21)figure Figure 4
Figure 5(p. 23)figure Figure 5

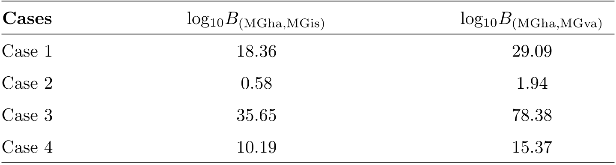

Table 3(p. 24)table Table 3

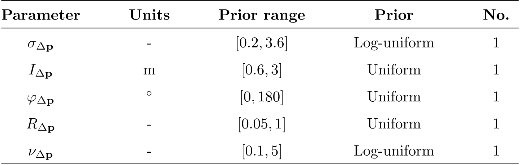

Table 4(p. 25)table Table 4
Figure 6(p. 26)figure Figure 6
Figure 7(p. 28)figure Figure 7
Figure 8(p. 29)figure Figure 8
Table 5(p. 31)table Table 5
Figure 9(p. 33)figure Figure 9
Figure 10(p. 35)figure Figure 10

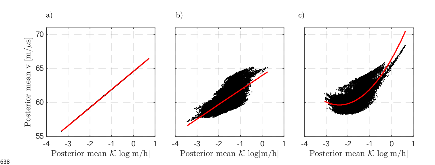

Figure 11(p. 36)figure Figure 11
Figure 12(p. 37)figure Figure 12
