Shape retention and infiltration height in complex WC-Co parts made via binder jet of WC with subsequent Co melt infiltration

Journal Article · · Additive Manufacturing
 [1];  [1];  [2];  [1];  [1]
  1. Oak Ridge National Lab. (ORNL), Oak Ridge, TN (United States)
  2. Colorado State Univ., Fort Collins, CO (United States)
+ Show Author Affiliations
Additive manufacturing (AM) of complex tungsten carbide-cobalt (WC-Co) parts was achieved using binder jet additive manufacturing (BJAM) of WC powders followed by Co infiltration. The intent of the study is to explore the shape retention, infiltration height, and properties of parts made with this method. Using BJAM with infiltration of the metal phase can limit shrinkage and grain growth in ceramic-metal (cermet) composites compared to other additive manufacturing (AM) methods. Knowledge of previous infiltration studies was used to help process parts to imitate production of parts. The properties such as density, microstructure, grain size, and hardness of the parts are characterized along the infiltration height. Fracture toughness is measured where applicable. Furthermore, this approach has the potential to achieve highly dense WC-Co parts that are net-shaped with some ternary phase and z-direction distortion.
Research Organization:
Oak Ridge National Laboratory (ORNL), Oak Ridge, TN (United States)
Sponsoring Organization:
USDOE; USDOE Office of Energy Efficiency and Renewable Energy (EERE)
Grant/Contract Number:
AC05-00OR22725
OSTI ID:
1560458
Alternate ID(s):
OSTI ID: 2325171
Journal Information:
Additive Manufacturing, Journal Name: Additive Manufacturing Journal Issue: C Vol. 29; ISSN 2214-8604
Publisher:
ElsevierCopyright Statement
Country of Publication:
United States
Language:
English

Figures / Tables (8)

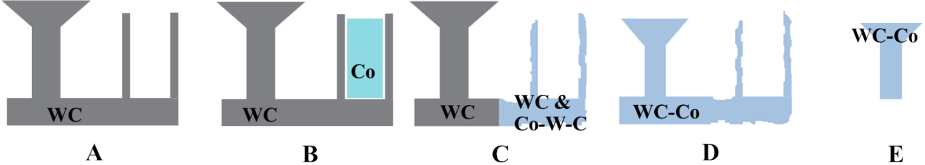

Figure 1(p. 4)figure Figure 1

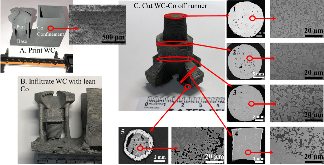

Figure 2(p. 5)figure Figure 2

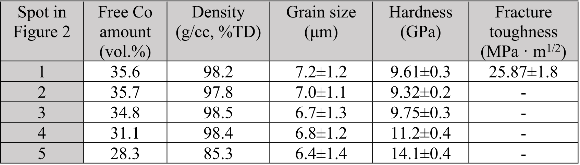

Table 1(p. 5)table Table 1
Figure 3(p. 6)figure Figure 3
Figure 4(p. 7)figure Figure 4
Figure 5(p. 8)figure Figure 5

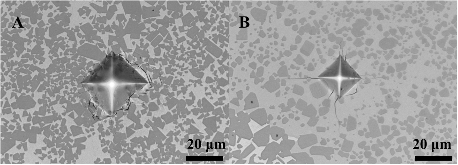

Figure 6(p. 9)figure Figure 6

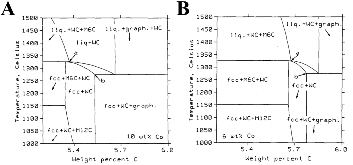

Figure 7(p. 10)figure Figure 7
