Synthesis route attribution of sulfur mustard by multivariate data analysis of chemical signatures

Journal Article · · Talanta
 [1];  [2];  [1];  [1];  [1];  [2];  [2];  [2];  [2];  [2];  [1];  [1]
  1. Swedish Defence Research Agency, Umeå (Sweden)
  2. Lawrence Livermore National Lab. (LLNL), Livermore, CA (United States). Forensic Science Center
+ Show Author Affiliations

A multivariate model was developed here to attribute samples to a synthetic method used in the production of sulfur mustard (HD). Eleven synthetic methods were used to produce 66 samples for model construction. Three chemists working in both participating laboratories took part in the production, with the aim to introduce variability while reducing the influence of laboratory or chemist specific impurities in multivariate analysis. A gas chromatographic/mass spectrometric data set of peak areas for 103 compounds was subjected to orthogonal partial least squares - discriminant analysis to extract chemical attribution signature profiles and to construct multivariate models for classification of samples. For one- and two-step routes, model quality allowed the classification of an external test set (16/16 samples) according to synthesis conditions in the reaction yielding sulfur mustard. Classification of samples according to first-step methodology was considerably more difficult, given the high purity and uniform quality of the intermediate thiodiglycol produced in the study. Model performance in classification of aged samples was also investigated.

Research Organization:
Lawrence Livermore National Lab. (LLNL), Livermore, CA (United States); Swedish Defence Research Agency, Umeå (Sweden)
Sponsoring Organization:
USDOE National Nuclear Security Administration (NNSA); Dept. of Homeland Security (DHS) (United States); Swedish Civil Contingencies Agency
Grant/Contract Number:
AC52-07NA27344
OSTI ID:
1512629
Report Number(s):
LLNL-JRNL--738170; 887649
Journal Information:
Talanta, Journal Name: Talanta Vol. 186; ISSN 0039-9140
Publisher:
ElsevierCopyright Statement
Country of Publication:
United States
Language:
English

Figures / Tables (7)

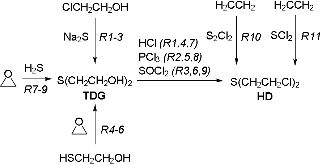

Fig. 1(p. 5)figure Fig. 1
Fig. 2(p. 8)figure Fig. 2

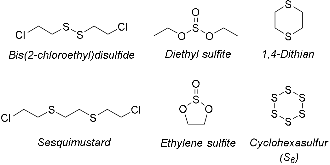

Fig. 3(p. 9)figure Fig. 3
Fig. 4(p. 10)figure Fig. 4
Fig. 5(p. 11)figure Fig. 5
Table 1(p. 12)table Table 1
Fig. 6(p. 13)figure Fig. 6

Similar Records

Related Subjects

37 INORGANIC, ORGANIC, PHYSICAL, AND ANALYTICAL CHEMISTRY
chemical forensics
multivariate data analysis
sulfur mustard
synthesis method attribution
