Interactive Exploration and Analysis of Large-Scale Simulations Using Topology-Based Data Segmentation

Journal Article · · IEEE Transactions on Visualization and Computer Graphics
 [1];  [2];  [3];  [4];  [2];  [2]
  1. Lawrence Livermore National Lab. (LLNL), Livermore, CA (United States)
  2. Lawrence Berkeley National Lab. (LBNL), Berkeley, CA (United States)
  3. French National Center for Scientific Research, Paris (France); Telecom ParisTech (France)
  4. Univ. of Utah, Salt Lake City, UT (United States)
+ Show Author Affiliations
Large-scale simulations are increasingly being used to study complex scientific and engineering phenomena. As a result, advanced visualization and data analysis are also becoming an integral part of the scientific process. Often, a key step in extracting insight from these large simulations involves the definition, extraction, and evaluation of features in the space and time coordinates of the solution. However, in many applications, these features involve a range of parameters and decisions that will affect the quality and direction of the analysis. Examples include particular level sets of a specific scalar field, or local inequalities between derived quantities. A critical step in the analysis is to understand how these arbitrary parameters/decisions impact the statistical properties of the features, since such a characterization will help to evaluate the conclusions of the analysis as a whole. We present a new topological framework that in a single-pass extracts and encodes entire families of possible features definitions as well as their statistical properties. For each time step we construct a hierarchical merge tree a highly compact, yet flexible feature representation. While this data structure is more than two orders of magnitude smaller than the raw simulation data it allows us to extract a set of features for any given parameter selection in a postprocessing step. Furthermore, we augment the trees with additional attributes making it possible to gather a large number of useful global, local, as well as conditional statistic that would otherwise be extremely difficult to compile. We also use this representation to create tracking graphs that describe the temporal evolution of the features over time. Our system provides a linked-view interface to explore the time-evolution of the graph interactively alongside the segmentation, thus making it possible to perform extensive data analysis in a very efficient manner. We demonstrate our framework by extracting and analyzing burning cells from a large-scale turbulent combustion simulation. In particular, we show how the statistical analysis enabled by our techniques provides new insight into the combustion process.
Research Organization:
Lawrence Berkeley National Laboratory (LBNL), Berkeley, CA (United States)
Sponsoring Organization:
USDOE Office of Science (SC), Advanced Scientific Computing Research (ASCR) (SC-21)
Grant/Contract Number:
AC02-05CH11231
OSTI ID:
1511329
Journal Information:
IEEE Transactions on Visualization and Computer Graphics, Journal Name: IEEE Transactions on Visualization and Computer Graphics Journal Issue: 9 Vol. 17; ISSN 1077-2626
Publisher:
IEEECopyright Statement
Country of Publication:
United States
Language:
English

Cited By (4)

Graphs in Scientific Visualization: A Survey: Graphs in Scientific Visualization: A Survey journal February 2016
In Situ Methods, Infrastructures, and Applications on High Performance Computing Platforms journal June 2016
A Survey of Topology-based Methods in Visualization journal June 2016
Data Reduction Techniques for Simulation, Visualization and Data Analysis: Survey on Scientific Data Reduction Techniques journal March 2018

Figures / Tables (18)

Fig. 1(p. 4)figure Fig. 1

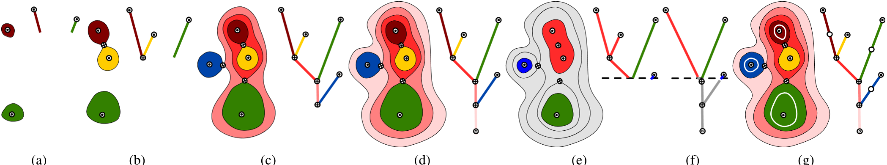

Fig. 2(p. 6)figure Fig. 2

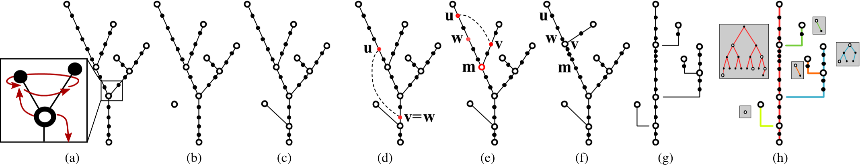

Fig. 3(p. 6)figure Fig. 3
Fig. 4(p. 6)figure Fig. 4
Fig. 5(p. 7)figure Fig. 5

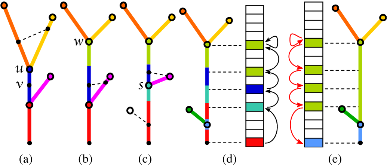

Fig. 6(p. 8)figure Fig. 6
Fig. 7(p. 9)figure Fig. 7
Fig. 8(p. 9)figure Fig. 8

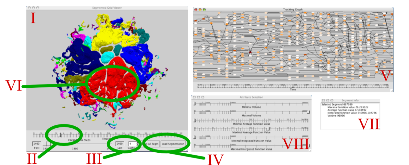

Fig. 9(p. 10)figure Fig. 9

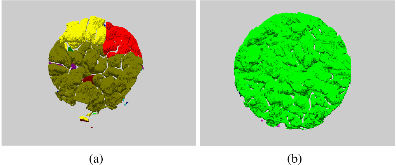

Fig. 10(p. 11)figure Fig. 10
Fig. 11(p. 11)figure Fig. 11

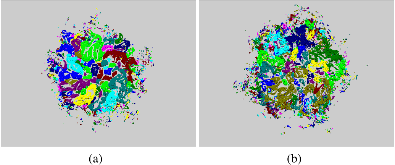

Fig. 12(p. 12)figure Fig. 12

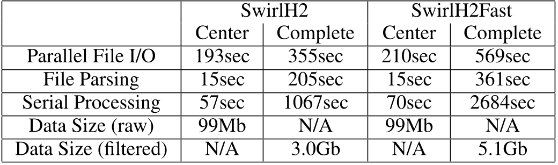

Table 1(p. 12)table Table 1
Fig. 13(p. 13)figure Fig. 13

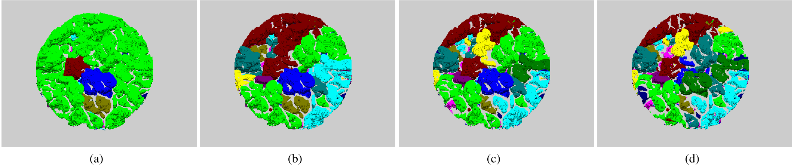

Fig. 14(p. 13)figure Fig. 14

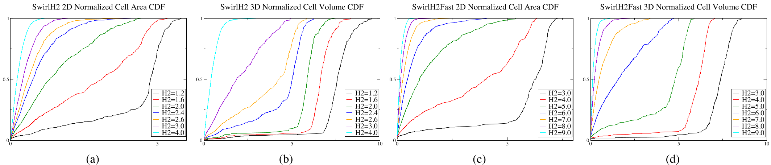

Fig. 15(p. 13)figure Fig. 15

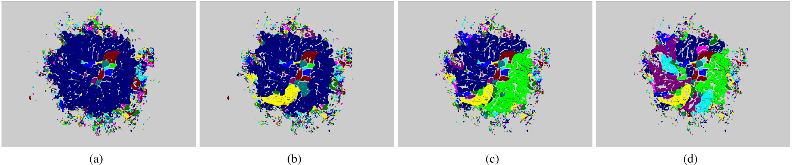

Fig. 16(p. 13)figure Fig. 16

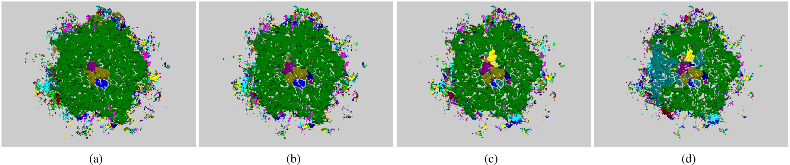

Fig. 17(p. 13)figure Fig. 17
