Gd5Si4-PVDF nanocomposite films and their potential for triboelectric energy harvesting applications

Harstad, S. M.; Zhao, P.; Soin, N.; El-Gendy, A. A.; Gupta, S.; Pecharsky, V. K.; Luo, J.; Hadimani, R. L.

doi:10.1063/1.5080116

Gd5Si4-PVDF nanocomposite films and their potential for triboelectric energy harvesting applications

Journal Article · Wed Mar 13 00:00:00 EDT 2019 · AIP Advances

DOI:https://doi.org/10.1063/1.5080116· OSTI ID:1503853

Harstad, S. M. ^[1]; Zhao, P. ^[2]; Soin, N. ^[2]; El-Gendy, A. A. ^[3]; Gupta, S. ^[4]; Pecharsky, V. K. ^[4]; Luo, J. ^[2]; ^[5]

Virginia Commonwealth Univ., Richmond, VA (United States)
Univ. of Bolton (United Kingdom)
Virginia Commonwealth Univ., Richmond, VA (United States); Univ. of Texas, El Paso, TX (United States)
Ames Lab., Ames, IA (United States)
Virginia Commonwealth Univ., Richmond, VA (United States); Iowa State Univ., Ames, IA (United States)

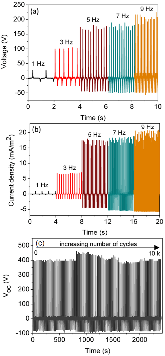

The triboelectric energy generators prepared using the combination of self-polarized, high β-phase nanocomposite films of Gd₅Si₄-PVDF and polyamide-6 (PA-6) films have generated significantly higher voltage of ~425 V, short-circuit current density of ~30 mA/m² and a charge density of ~116.7 μC/m² as compared to corresponding values of ~300 V, 30 mA/m² and 94.7 μC/m^2, respectively for the pristine PVDF-(PA-6) combination. The magnetic measurements of the Gd₅Si₄-PVDF films display a ferromagnetic behavior as compared to diamagnetic nature of pristine PVDF. The presence of magnetic nanoparticles in the polymeric matrix allows for some control over the microstructural properties during the preparation process. The results open new routes for multiferroic composite films to be suitable for multi-functional magnetic and triboelectric energy harvesting applications.

Research Organization:: Ames Lab., Ames, IA (United States)

Sponsoring Organization:: USDOE

Grant/Contract Number:: AC02-07CH11358

OSTI ID:: 1503853

Report Number(s):: IS-J--9920

Journal Information:: AIP Advances, Journal Name: AIP Advances Journal Issue: 3 Vol. 9; ISSN 2158-3226

Publisher:: American Institute of Physics (AIP)Copyright Statement

Country of Publication:: United States

Language:: English

References (12)

Self-Powered Nanosensors and Nanosystems Wang, Zhong Lin Advanced Materials, Vol. 24, Issue 2 https://doi.org/10.1002/adma.201102958	journal	November 2011
Flexible triboelectric generator Fan, Feng-Ru; Tian, Zhong-Qun; Lin Wang, Zhong Nano Energy, Vol. 1, Issue 2, p. 328-334 https://doi.org/10.1016/j.nanoen.2012.01.004	journal	March 2012
Enhancing the performance of triboelectric nanogenerator through prior-charge injection and its application on self-powered anticorrosion Wang, Zhe; Cheng, Li; Zheng, Youbin Nano Energy, Vol. 10 https://doi.org/10.1016/j.nanoen.2014.08.017	journal	November 2014
Triboelectric nanogenerators as self-powered active sensors Wang, Sihong; Lin, Long; Wang, Zhong Lin Nano Energy, Vol. 11 https://doi.org/10.1016/j.nanoen.2014.10.034	journal	January 2015
High performance triboelectric nanogenerators based on phase-inversion piezoelectric membranes of poly(vinylidene fluoride)-zinc stannate (PVDF-ZnSnO3) and polyamide-6 (PA6) Soin, Navneet; Zhao, Pengfei; Prashanthi, Kovur Nano Energy, Vol. 30 https://doi.org/10.1016/j.nanoen.2016.10.040	journal	December 2016
Nanofibrous membrane constructed wearable triboelectric nanogenerator for high performance biomechanical energy harvesting Li, Zhaoling; Shen, Jiali; Abdalla, Ibrahim Nano Energy, Vol. 36 https://doi.org/10.1016/j.nanoen.2017.04.035	journal	June 2017
A universal self-charging system driven by random biomechanical energy for sustainable operation of mobile electronics Niu, Simiao; Wang, Xiaofeng; Yi, Fang Nature Communications, Vol. 6, Issue 1 https://doi.org/10.1038/ncomms9975	journal	December 2015
Progress in triboelectric nanogenerators as a new energy technology and self-powered sensors Wang, Zhong Lin; Chen, Jun; Lin, Long Energy & Environmental Science, Vol. 8, Issue 8 https://doi.org/10.1039/c5ee01532d	journal	January 2015
Electromagnetic wave absorption properties of ternary poly(vinylidene fluoride)/magnetite nanocomposites with carbon nanotubes and graphene Tsonos, C.; Soin, N.; Tomara, G. RSC Advances, Vol. 6, Issue 3 https://doi.org/10.1039/c5ra24956b	journal	January 2016
Enhancement of 𝜷-phase in PVDF films embedded with ferromagnetic Gd ₅ Si ₄ nanoparticles for piezoelectric energy harvesting Harstad, Shane; D’Souza, Noel; Soin, Navneet AIP Advances, Vol. 7, Issue 5 https://doi.org/10.1063/1.4973596	journal	May 2017
Investigation of Room Temperature Ferromagnetic Nanoparticles of Gd ₅ Si ₄ Hadimani, R. L.; Gupta, S.; Harstad, S. M. IEEE Transactions on Magnetics, Vol. 51, Issue 11 https://doi.org/10.1109/TMAG.2015.2446774	journal	November 2015
Multifunctional nanocomposites of poly(vinylidene fluoride) reinforced by carbon nanotubes and magnetite nanoparticles Tsonos, C.; Pandis, C.; Soin, N. Express Polymer Letters, Vol. 9, Issue 12 https://doi.org/10.3144/expresspolymlett.2015.99	journal	January 2015

Cited By (1)

Magnetocaloric Effect of Micro- and Nanoparticles of Gd5Si4 Harstad, S. M.; El-Gendy, A. A.; Gupta, S. JOM, Vol. 71, Issue 9 https://doi.org/10.1007/s11837-019-03626-1	journal	July 2019
