Improved fission neutron energy discrimination with 4He detectors through pulse filtering

Journal Article · · Nuclear Instruments and Methods in Physics Research. Section A, Accelerators, Spectrometers, Detectors and Associated Equipment
 [1];  [2];  [2];  [2];  [2];  [2];  [3];  [4];  [5];  [2];  [2];  [2];  [2]
  1. Univ. of Florida, Gainesville, FL (United States); University of Michigan
  2. Univ. of Florida, Gainesville, FL (United States)
  3. Arktis Radiation Detection Ltd., Zurich (Switzerland)
  4. Sandia National Lab. (SNL-NM), Albuquerque, NM (United States)
  5. Korean Inst. for Nuclear Nonproliferation and Control, Daejeon (South Korea)
+ Show Author Affiliations

Our paper presents experimental and computational techniques implemented for 4He gas scintillation detectorsfor inducedfission neutron detection. Fission neutrons are produced when natural uranium samples are activelyinterrogated by 2.45 MeV deuterium-deuterium fusion reaction neutrons. Fission neutrons of energies greaterthan 2.45 MeV can be distinguished by their different scintillation pulse height spectra since 4He detectorsretain incident fast neutron energy information. To enable the preferential detection of fast neutrons up to10 MeV and suppress low-energy event counts, the detector photomultiplier gain is lowered and triggerthreshold is increased. Pile-up and other unreliable events due to the interrogating neutronflux and backgroundradiation arefiltered out prior to the evaluation of pulse height spectra. With these problem-specific calibrationsand data processing, the 4He detector's accuracy at discriminatingfission neutrons up to 10 MeV is improvedand verified with 252Cf spontaneousfission neutrons. Given the 4He detector's ability to differentiate fastneutron sources, this proof-of-concept active-interrogation measurement demonstrates the potential of specialnuclear materials detection using a 4He fast neutron detection system.

Research Organization:
Univ. of Michigan, Ann Arbor, MI (United States)
Sponsoring Organization:
USDOE National Nuclear Security Administration (NNSA), Office of Defense Nuclear Nonproliferation (NA-20)
Grant/Contract Number:
NA0002534
OSTI ID:
1487100
Alternate ID(s):
OSTI ID: 1417095
OSTI ID: 22634513
Journal Information:
Nuclear Instruments and Methods in Physics Research. Section A, Accelerators, Spectrometers, Detectors and Associated Equipment, Journal Name: Nuclear Instruments and Methods in Physics Research. Section A, Accelerators, Spectrometers, Detectors and Associated Equipment Journal Issue: C Vol. 848; ISSN 0168-9002
Publisher:
ElsevierCopyright Statement
Country of Publication:
United States
Language:
English

References (11)

MCNPX-PoliMi for nuclear nonproliferation applications
  • Pozzi, S. A.; Clarke, S. D.; Walsh, W. J.
  • Nuclear Instruments and Methods in Physics Research Section A: Accelerators, Spectrometers, Detectors and Associated Equipment, Vol. 694 https://doi.org/10.1016/j.nima.2012.07.040
journal December 2012
Active-interrogation measurements of fast neutrons from induced fission in low-enriched uranium
  • Dolan, J. L.; Marcath, M. J.; Flaska, M.
  • Nuclear Instruments and Methods in Physics Research Section A: Accelerators, Spectrometers, Detectors and Associated Equipment, Vol. 738 https://doi.org/10.1016/j.nima.2013.11.052
journal February 2014
Neutron response function characterization of 4He scintillation detectors
  • Kelley, Ryan P.; Rolison, Lucas M.; Lewis, Jason M.
  • Nuclear Instruments and Methods in Physics Research Section A: Accelerators, Spectrometers, Detectors and Associated Equipment, Vol. 793 https://doi.org/10.1016/j.nima.2015.04.011
journal September 2015
Pulse shape discrimination in helium-4 scintillation detectors
  • Kelley, Ryan P.; Enqvist, Andreas; Jordan, Kelly A.
  • Nuclear Instruments and Methods in Physics Research Section A: Accelerators, Spectrometers, Detectors and Associated Equipment, Vol. 830 https://doi.org/10.1016/j.nima.2016.05.065
journal September 2016
Active detection of small quantities of shielded highly-enriched uranium using low-dose 60-kev neutron interrogation
  • Kerr, Phil; Rowland, Mark; Dietrich, Dan
  • Nuclear Instruments and Methods in Physics Research Section B: Beam Interactions with Materials and Atoms, Vol. 261, Issue 1-2 https://doi.org/10.1016/j.nimb.2007.04.190
journal August 2007
Active Inspection of Nuclear Materials Using [sup 4]He Scintillation Detectors
  • Davatz, G.; Chandra, R.; Gendotti, U.
  • APPLICATIONS OF NUCLEAR TECHNIQUES: Eleventh International Conference, AIP Conference Proceedings https://doi.org/10.1063/1.3665333
conference January 2011
Fission signal detection using helium-4 gas fast neutron scintillation detectors journal July 2014
Fast neutron detection with pressurized 4 He scintillation detectors journal March 2012
Fast neutron detection in homeland security applications
  • Chandra, R.; Davatz, G.; Gendotti, U.
  • 2010 IEEE Nuclear Science Symposium and Medical Imaging Conference (2010 NSS/MIC), IEEE Nuclear Science Symposuim & Medical Imaging Conference https://doi.org/10.1109/NSSMIC.2010.5873813
conference October 2010
Analysis of In-Situ Fission Rate Measurements Using $^4{\rm He}$ Gas Scintillation Detectors journal August 2014
Using fast neutron signatures for improved UF6 cylinder enrichment measurements report September 2013

Cited By (1)

Calculation of Particle Emissions and Fusion Cross Sections After 8 B( t ,*), 9 B( t ,*), and 10 B( t ,*) Reactions by Monte Carlo Simulations journal February 2020

Figures / Tables (18)

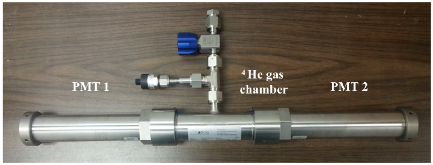

Figure 1(p. 2)figure Figure 1
Figure 2(p. 2)figure Figure 2
Figure 3(p. 2)figure Figure 3
Figure 4(p. 3)figure Figure 4
Figure 5(p. 4)figure Figure 5
Figure 6(p. 4)figure Figure 6

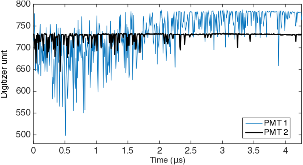

Figure 7(p. 4)figure Figure 7
Figure 10(p. 5)figure Figure 10
Figure 11(p. 5)figure Figure 11

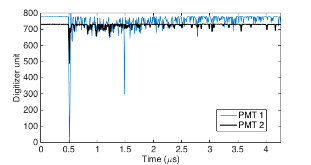

Figure 8(p. 5)figure Figure 8
Figure 9(p. 5)figure Figure 9

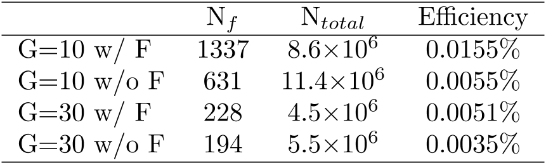

Table 1(p. 6)table Table 1

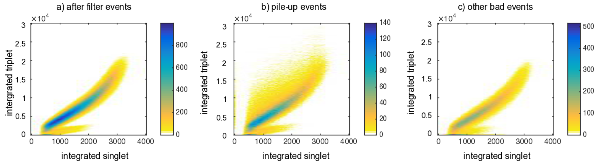

Figure 12(p. 7)figure Figure 12

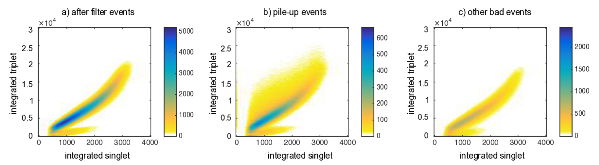

Figure 13(p. 7)figure Figure 13
Figure 14(p. 7)figure Figure 14
Figure 15(p. 7)figure Figure 15
Figure 16(p. 8)figure Figure 16
Figure 17(p. 8)figure Figure 17
